How Do Browsers Render the Different CSS Border Style Values?

You’ve probably used CSS’s border property often, and in almost all cases you’ve probably set the border-style value to “solid”, which looks exactly the same in every browser.

We all know there are other values for border-style, but it’s likely you’ve never used any of them. You may have used a value of “dashed” or “dotted”, but probably not too often.

I thought it would be interesting to screen capture how all the different browsers display all the different values for border-style. In addition to the screen shots, I’ve provided some observations and I’ve summarized how the different values are supposed to look (according to the specification). All screen shots are taken on a Windows 7 machine.

The Code Used

I’m using two different code blocks with the various border-style properties. The first three screen shots are using the following, with the others changing only the border color and, of course, the border style:

.box {
  width: 50px;
  height: 50px;
  border-width: 5px;
  border-color: #444; /* changes to "pink" for the rest */
  border-style: dotted; /* dashed, double, groove, ridge, inset, outset */

The change in border color for the other values helps them to be more visible.

Due to the different ways that some browsers render the box model (guess who?), there are some minor differences in the sizes of a few of the boxes, but I’m not discussing those issues here.

Value: dotted

Dotted borders in different browsers

Some look like diamonds, others like circles. Firefox, Chrome and Safari have stronger corners. IE10’s is the only one that has circular dots all the way around. Opera’s probably looks the cleanest.

How Should it Look?
According to the spec, the border should be “a series of round dots”.

Who Gets it Right?
IE10 renders this closest to what the spec describes. Firefox is the only other browser that actually renders “round dots”.

Value: dashed

Dashed borders in different browsers

Because of more generous spacing, Chrome, Safari, and Firefox render this quite differently from the others. Firefox has a bizarre way of not wrapping the dashes in the corners. Once again, Opera’s looks the nicest, while all the IE versions look pretty good too.

How Should it Look?
According to the spec, the border should be “a series of square-ended dashes”.

Who Gets it Right?
By the spec’s definition, everyone gets this right. Although, if you want to be really picky, you could say that Firefox’s ugly version is more accurate, since their dashes don’t cross over two sides like all the others do.

Value: double

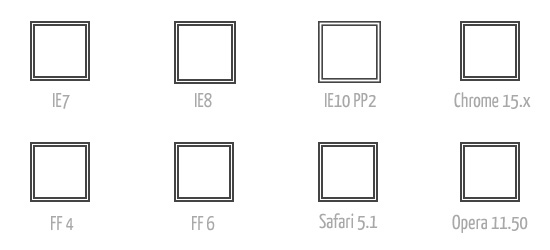

Double borders in different browsers

From what I can see, all browsers show the double border the same. There seems to be a slightly lighter color on the IE10 version of the border, but other than that, I don’t see any differences.

How Should it Look?
“Two parallel solid lines with some space between them”, and the total thickness of the lines plus the space should be the same as the value of the border-width value.

Who Gets it Right?
Everyone, from what I can tell.

Value: groove

Groove borders in different browsers

There are quite a few differences between the different rendering engines. The IE versions are the ugliest. And once again, Opera’s looks better than the rest.

How Should it Look?
It’s supposed to look like the border is “carved” into the page with shadows cast that are darker shades of the border color. I honestly don’t see these as being “carved”.

Who Gets it Right?
As far as I can see, none of them. But maybe I’m being too picky. To me, they resemble the impossible triangle.

Value: ridge

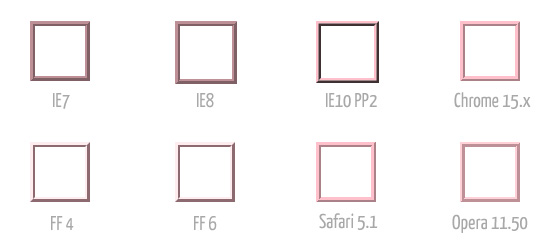

Ridge borders in different browsers

IE10 has a really bold look compared to the others. IE7 and IE8 look ugly. Chrome’s is probably the most attractive.

How Should it Look?
This is supposed to be the opposite of “groove”. Instead of being carved into the page, this border should look like it’s coming out of the page.

Who Gets it Right?
To some extent, they all get it right. But not all are as obvious. Firefox, Safari, and Chrome are probably the most accurate.

Value: inset

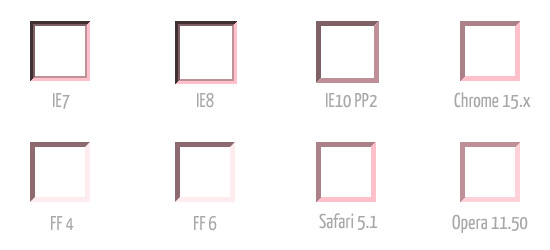

Inset borders in different browsers

They all look pretty similar. IE7 and IE8 have darker shadowing plus a secondary inner shadow that the others don’t have.

How Should it Look?
This border is supposed to make the content inside the box look like it’s “sunken” into the page.

Who Gets it Right?
I think everyone gets this right except IE7 and IE8. To me, they all look “sunken”, except the older IEs which actually look more like “ridge” because of the extra shadow.

Value: outset

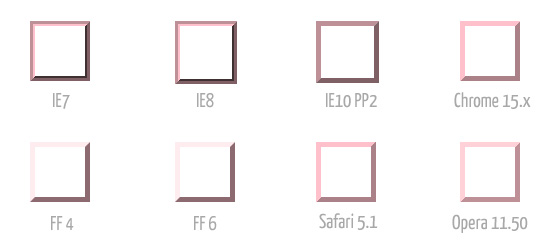

Outset borders in different browsers

These all look pretty good. The IEs are all darker. I think Safari and Chrome look the best, and I also like the way IE7 and IE8 look.

How Should it Look?
This is the opposite of “inset”. The content inside the box should look “raised” off the page.

Who Gets it Right?
To some degree, they all do. But believe it or not, I think IE7 and IE8 are more accurate than the rest. Those ones look especially “raised”. The problem with most of the others is that they’re just reversing the shadows from the “inset” value. This makes both “inset” and “outset” look quite similar. IE10 is probably the worst, and the ugliest.


As with many browser-rendered graphics, there are clear differences between the different rendering engines. As usual, these differences are pretty trivial, so I wouldn’t sweat using any of these values.

Just like form elements, you’ll never get these looking exactly the same cross-browser, and neither should you want need to. But if nothing else, it’s interesting seeing how the different browser makers interpret these different values.
